GH-126R
PCI 32bit riser card for HTPC, Mini-ITX. The right-side insertion verson of GH-126.
GH-126
PCI 32bit raiser card for HTPC. Mechanically identical to PCI Express X16 verson GH-127.
GH-152-C7
5V 32-bit PCI 7cm flexible cable riser card for left-side insertion.
13cm available in OEM quantity.
GH-152-R-C7
5V 32-bit PCI 7cm flexible cable riser card for right-side insertion.
13cm available in OEM quantity.
GH-152-V-C13
5V 32-bit PCI flexible cable riser card. Flat cables run vertically from gold finger to avoid conflicts.
GH-153-C7
3.3V 64-bit PCI-X flexible cable riser card.
* Obsolete

GH-153-C7-RD
3.3V 64-bit PCI-X flexible cable riser card with reversed connector direction. The picture on the left shows GH-153-C&-RD installed with GH-153-C7 to build a 2-PCI slot 1U IPC system using Supermicro H6DHP-8G2 motherboard.
* Obsolete
GH-155-F
PCI-X 5V 64-bit Riser Card for 1U IPC chassis and slim server case, with 8.7 mm of forwarding shift.
* Obsolete

GH-183
3.3V 64bit PCI-X Riser Card for 1U IPC chassis and slim server case.
* Obsolete
GH-U183
3.3V 64bit PCI-X Riser Card for 1U IPC chassis and slim server case. Slot is 3.2mm higher than GH-183.
* Available only in OEM quantity
GH-210S
Right-side insertion PCI 32-bit Riser Card for 1U IPC chassis and slim server case.
* Obsolete
GH-210
Two slots PCI 32-bit Riser Card for 1U IPC chassis and slim server case.
* Obsolete
GH-213-S
Right-side insertion PCI 64-bit Riser Card for 1U IPC chassis and slim server case.
* Obsolete

GH-U213
Two slots 64-bit PCI-X Riser Card for 1U IPC chassis and slim server case.
* Obsolete
GH-610
PCI 32-bit Riser Card for 1U IPC chassis and slim server case.
GH-260-S
PCI 32-bit Riser Card for 2U IPC chassis and slim PC.
GH-260
PCI 32-bit Riser Card for slim PC.
GH-156-C9
5V 32-bit PCI flexible cable riser card. Same mounting holes as GH-157-Cx (PCIe version).
* Available only in OEM quantity
GH-158-Cx
5V 32-bit PCI flexible cable riser card.
* Available only in OEM quantity
GH-300
PCI 32-bit Riser Card for 2U IPC chassis and slim server case.
* Obsolete
GH-350
PCI 32-bit Riser Card for 2U IPC chassis and slim PC case.
* Obsolete
GH-356
PCI 64-bit Riser Card for 2U IPC chassis and slim server case.
* Obsolete
GH-U350
PCI 32-bit Riser Card for 2U IPC chassis and slim PC case.
* Obsolete
GH-U2350
PCI 32-bit Riser Card for 2U IPC chassis and slim server case. Special design for PCI at the 5th. slot on motherboard. For example, Advantech AIMB-762.
* Obsolete
GH-366
PCI 64-bit Riser Card for 2U IPC chassis and slim server case.
* Obsolete
GH-U642-C7 (2+1)
64-bit PCI-X + 32-bit PCI Riser Card for 2U IPC chassis and slim server case. With PCI flexible cable link for special motherboards with PCI-X + PCI channels such as ASUS NCLV-D and TYAN S5112. .** For GH-U64X(-CX), the 6th slot on the motherboard must be multi-slot channel and the PCI-Link should be installed in same channel. * Obsolete
GH-U650-C7
PCI 32-bit 2 channel Riser Card for 2U IPC chassis and slim server case.
* Obsolete
GH-U652
64-bit PCI-X + 32-bit PCI Riser Card for 2U IPC chassis and slim server case. With PCI link to next slot for special motherboards with PCI-X + PCI channels.
* Obsolete
GH-U652-C7 (1+2)
64-bit PCI-X + 32-bit PCI Riser Card for 2U IPC chassis and slim server case. With PCI flexible cable link for special motherboards with PCI-X + PCI channels such as Intel SE7210TP1-E. ** For GH-U65X-CX, the flat cable link should be installed in a multi-slot channel and the PCI-Link should be installed in same channel. * Obsolete
GH-U656
64-bit PCI-X 133MHz 2 channel Riser Card for 2U IPC chassis. With PCI link for special motherboards with two PCI-X channels such as SuperMicro X5DMS-8GM, X5DL8-GG and Intel SE7501CW2, SE7501HG2.
* Obsolete
GH-U656-C7
64-bit PCI-X 133MHz 2 channel Riser Card for 2U IPC chassis. With PCI flexible cable link for motherboards with two PCI-X channels. For GH-U65X-CX, the flat cable link should be installed in a multi-slot channel and the PCI-Link should be installed in same channel. * Obsolete

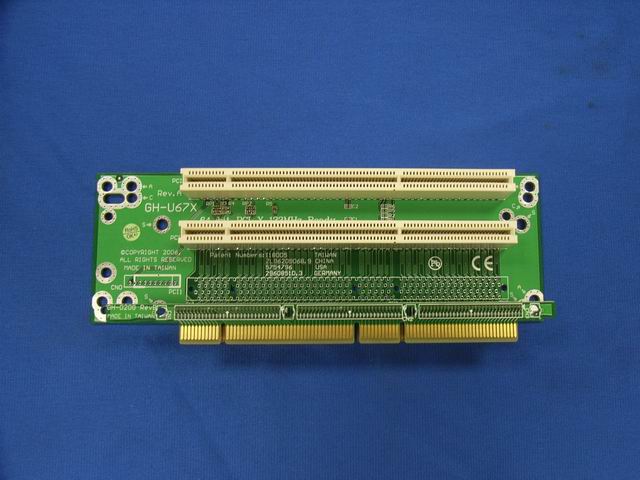

GH-U676
64-bit PCI-X 133MHz 2 channel Riser Card for 2U IPC chassis. With PCI link for special motherboards with two PCI-X channels such as SuperMicro X5DMS-8GM, X5DL8-GG and Intel SE7501CW2, SE7501HG2. Similar to GH-U65X but with the single slot channel on the middle. * Obsolete
GH-U676-C7
64-bit PCI-X 133MHz 2 channel Riser Card for 2U IPC chassis. With PCI flexible cable link for motherboards with two PCI-X channels. For GH-U67X-CX, the flat cable link should be installed in a multi-slot channel and the PCI-Link should be installed in same channel. * Obsolete
GH-U678
2U IPC riser card for two 64-bit PCI-X 133MHz channels.
* Obsolete
GH-U67A
64-bit PCI-X + 32-bit PCI Riser Card for 2U IPC chassis and slim server case. With PCI link to next slot for special motherboards with 64bit PCI-X on 6th. slot and 32bit PCI on 5th and 4th slots.
* Obsolete
GH-U696-01
64-bit PCI-X 133MHz Riser Card for 2U IPC chassis and slim server case. Designed for Intel serverboard SE7501WV2 (Westville).
* Obsolete
GH-U458-C5
Right-side insertion 64-bit PCI-X 133MHz 2 channel Riser Card for 2U IPC chassis. With 5cm PCI link cables for special motherboards with two PCI-X channels.
* Obsolete
GH-062
PCI extension card for slot and gold finger protection. It extends the PCI slot one slot pitch: 0.8 inches (20.3 mm).
GH-0632
PCI extension card for slot and gold finger protection. Designed for easy testing on 2U IPC chassis. It extends 2.6 inches (66 mm) of the PCI slot.
PA-MP1
Enable your PC to use Type III MiniPCI cards like Wireless LAN.
PA-MP2
Enable your PC to use Type III MiniPCI cards like Wireless LAN.
GH-060
AGP extension card for slot and gold finger protection. Also extend AGP height with one slot pitch (0.8").
* Obsolete
GH-061
AGP PRO extension card for slot and gold finger protection. Extends AGP PRO height with one slot pitch (0.8").
* Obsolete
GH-U160
AGP riser card for 1U IPC chassis. The slot height for GH-U160 is 14.7mm instead of 11.5mm for GH-160.
* Obsolete
GH-160
AGP riser card for 1U IPC chassis.
* Obsolete
GH-161
AGP Pro riser card for 1U IPC chassis.
* Obsolete
GH-560
PCI 32-bit + AGP riser card for 2U IPC chassis and book-sized PC.
* Obsolete
GH-500
PCI 32-bit x2 + AGP riser card for 2U IPC chassis and book-sized PC.
* Obsolete
GH-U540
PCI 32-bit x2 + AGP riser card for 2U IPC chassis and book-sized PC. For motherboards with AGP located on the 7th slot. AGP slot is the middle slot on the riser card.
* Obsolete
GH-2540-Cx
PCI 32-bit x2 + AGP riser card for 2U IPC chassis and book-sized PC. With PCI flexible cable link for special motherboards without a normal riser slot. Use GH-U2540 for ASUS P4P800, P4P8X, Albatron PX865PE Lite, etc.
* Obsolete
GH-U576
133MHz PCI-X 64-bit x2 + AGP riser card for 2U IPC chassis and book-sized PC. For motherboards with AGP Pro located on the 6th slot.
* Obsolete
GH-U576-C7
133MHz PCI-X 64-bit x2 + AGP riser card for 2U IPC chassis and book-sized PC. With PCI flexible cable link for special motherboards with AGP on 6th slot and PCI-X slots are not adjacent to the riser slot such as Intel serverboard SE7505VB2.
* Obsolete
GH-U579
PCI 32-bit x2 + AGP Pro riser card for 2U IPC chassis and book-sized PC. For motherboards with AGP Pro located on the 6th slot.
* Obsolete
GH-U580
PCI 32-bit x2 + AGP riser card for 2U IPC chassis and book-sized PC. For motherboards with AGP located on the 6th slot. Use GH-U580-C7 for Intel S875WP1-E.
* Obsolete
GH-200
PCI 32-bit and ISA Riser Card for 2U IPC chassis and slim server case. For motherboard with at least one ISA and two PCI slots.
* Obsolete
GH-N1X32
PCI 32bit to PCI Express Riser Card for Intel SR1530SH
Design based on INTEL SR1530SH 1U IPC server system using a bridge chipset that ensures the best performance and reliability. Plug into PCI Express slot, you can install a 32bit PCI add-on card in the system.
* Available only in OEM quantity
GH-U1A32
PCI 32-bit to PCI Express Riser Card for 1U IPC server system using a bridge chipset that ensures the best performance and reliability. Plug into PCI Express slot, you can install a 32bit PCI add-on card in the system.
GH-EB262-C9
Dual PCI 32bit slots to PCI Express Flexible Riser (9 or 13CM). It uses the latest bridge chipset that ensures the best performance and reliability. Plug into PCI Express slot, you can install two 32bit PCI add-on cards in the system.
GH-EB262-G1Cx
Dual PCI 32bit slots to PCI Express Mini Flexible Riser (9 or 13CM). It uses the latest bridge chipset that ensures the best performance and reliability. Plug into PCI Express Mini socket, you can install two 32bit PCI add-on cards in the system.
GH-EB132-C9
Single PCI 32bit slot to PCI Express Flexible Riser (9 or 13CM). It uses the latest bridge chipset that ensures the best performance and reliability. Plug into PCI Express slot, you can install 32bit PCI add-on card in the system.
GH-EB132-G1Cx
Single PCI 32bit slot to PCI Express Mini Flexible Riser (9 or 13CM). It uses the latest bridge chipset that ensures the best performance and reliability. Plug into PCI Express slot, you can install 32bit PCI add-on card in the system.
