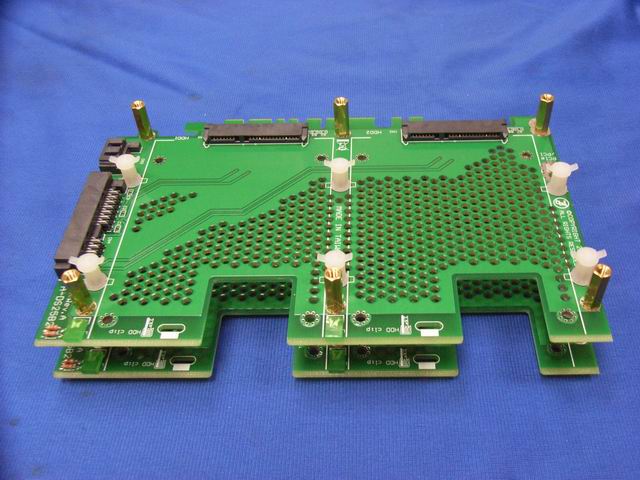

PA-DS25B2 Internal dual 2.5" SATA HDD
mounting card |
|
| The PA-DS25B2 provide two 2.5 inch SATA hard disk drive bays. Just slide it in or pull it out. It is easy to mount or remove HDDs. And it can installed in all kinds of slot. |  |
|
GH-N1X32
PCI 32bit to PCI Express Riser Card |
|
| Design
based on INTEL SR1530SH
1U server system using the latest bridge chipset that ensure the best performance
and reliability. Plug into PCI Express slot, you can install a 32bit PCI
add-on card in the system. |
 |
|
1U riser card for PCIexpress X16 on the 7th. or 5th. slot. GH-U29X16
and GH-U29X16D |
|
|
GH-U29X16D GH-U29X16 |
 |
|
2U riser card for PCIexpress X16 on the 7th. or 5th. slot. GH-U293X16
and GH-U293X16D |
|
|
GH-U293X16D GH-U293X16 |
 |
|
GH-07X16, GH-083X16, GH-0632 for 1U,
2U IPC easy testing |
|
  You can plug add-in card vertically
into 1U or 2U chassis for easy testing.
2U 1U |
 |
|
FAP-PDB2 6 sets of 3-pin fan power
distribution board |
|
| Adding extra cooling fans in the IPC chassis will be easier with FAP-PDB2. It supports up to 6 fans in two groups, fan speeds can be set to Normal or LOW. |  |
|
Flexible SD to TransFlash / MicroSD / Mini SD / adaptor |
|
 PA-TFC1
: SD to MicroSD / T-Flash flexible adapter.
Converts SD card to fit in Micro SD / Trans Flash socket, flexible 4 cm

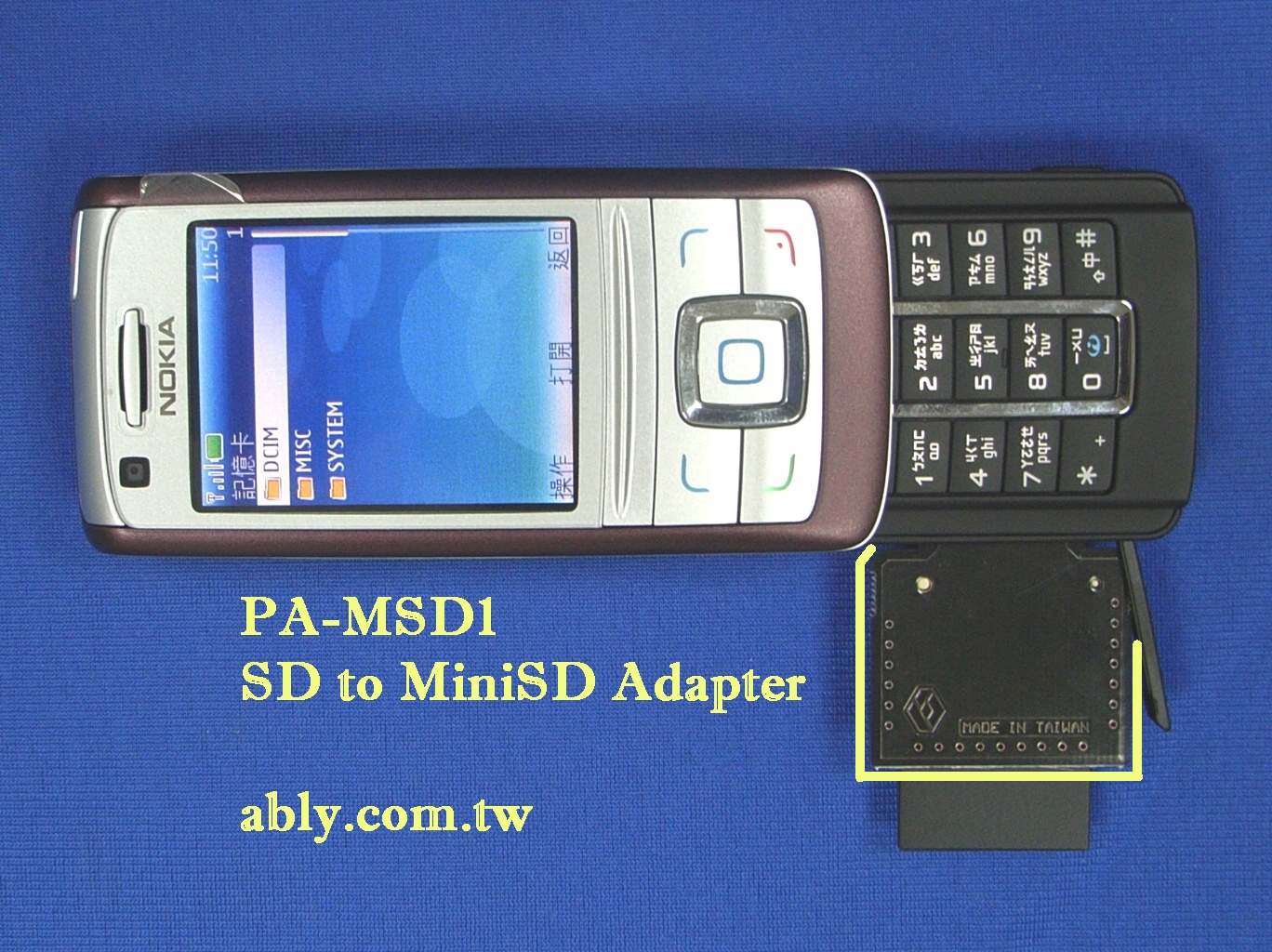

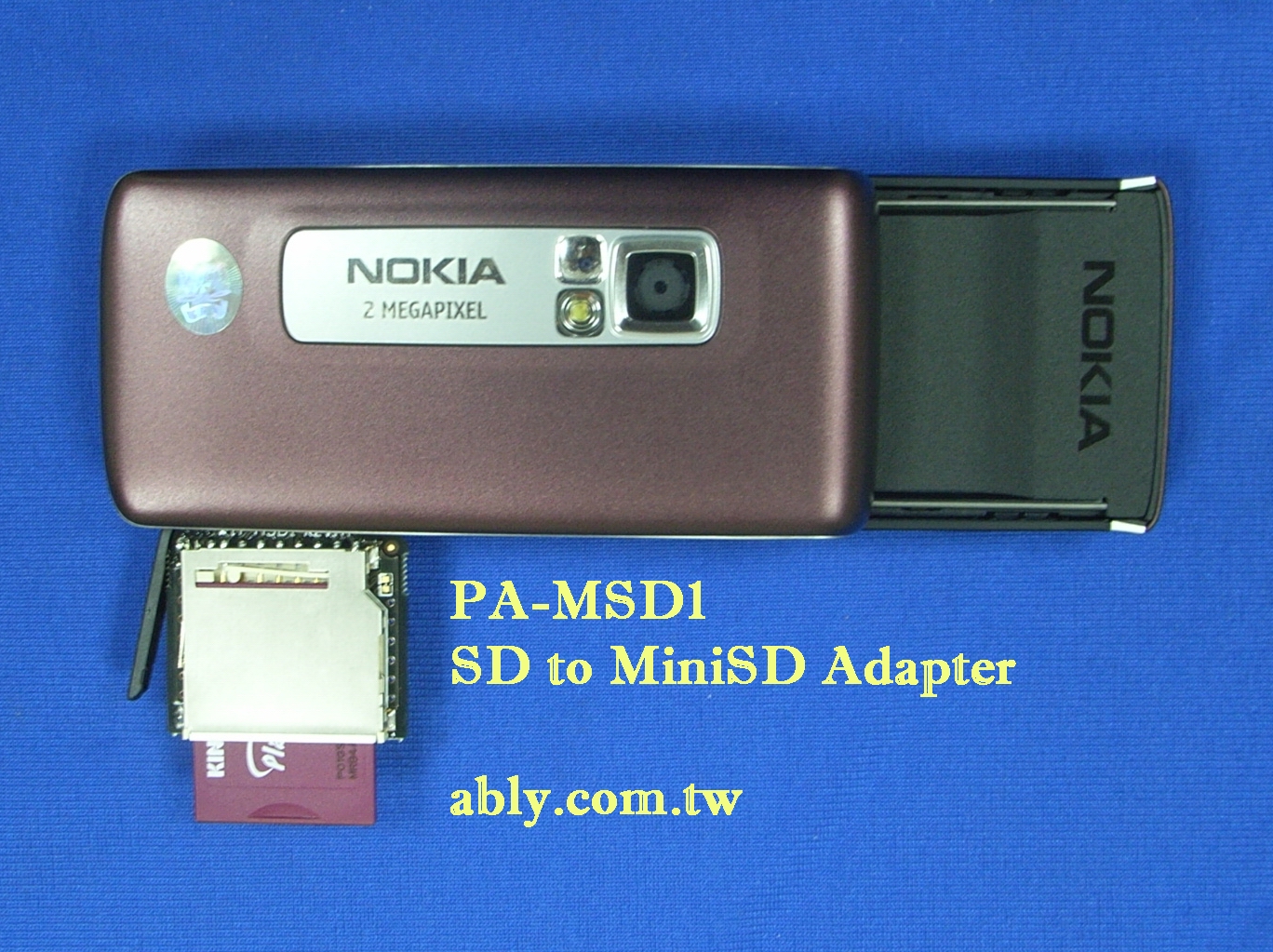

cable.PA-MSDFC Converts SD card to fit in MiniSD socket. It has 3 cm flexible cable for easy use. |
 |
|
New PCI and PCI-Express risers
for HTPC. |
|
  For
HTPC chassis the height is neither 1U nor 2U you can use GH-126, GH-127
or GH-128
(right-side insertion version). |
 |
|
PCIe raiser card for 2U IPC: GH-U192X16 and GH-U192X16+X1
(2
slots). |
|
 For
2U IPC chassis, GH-U192X16 (middle slot version) can be use with another
flexible riser card to meet your specific requirement. Models available
are similar to its top slot version GH-U193X16 |
 |
|
GH-PESX8EX-C7 flexi PCIe
raiser for X16 add-in card in X8, X4 or X1 slot. |
|
  To
allow connecting PCIe X16 add-on card to motherboard with X8, X4 or X1
slot through 70mm of flexi cable. |
 |
|
Find out the differences and choose the best one |
|

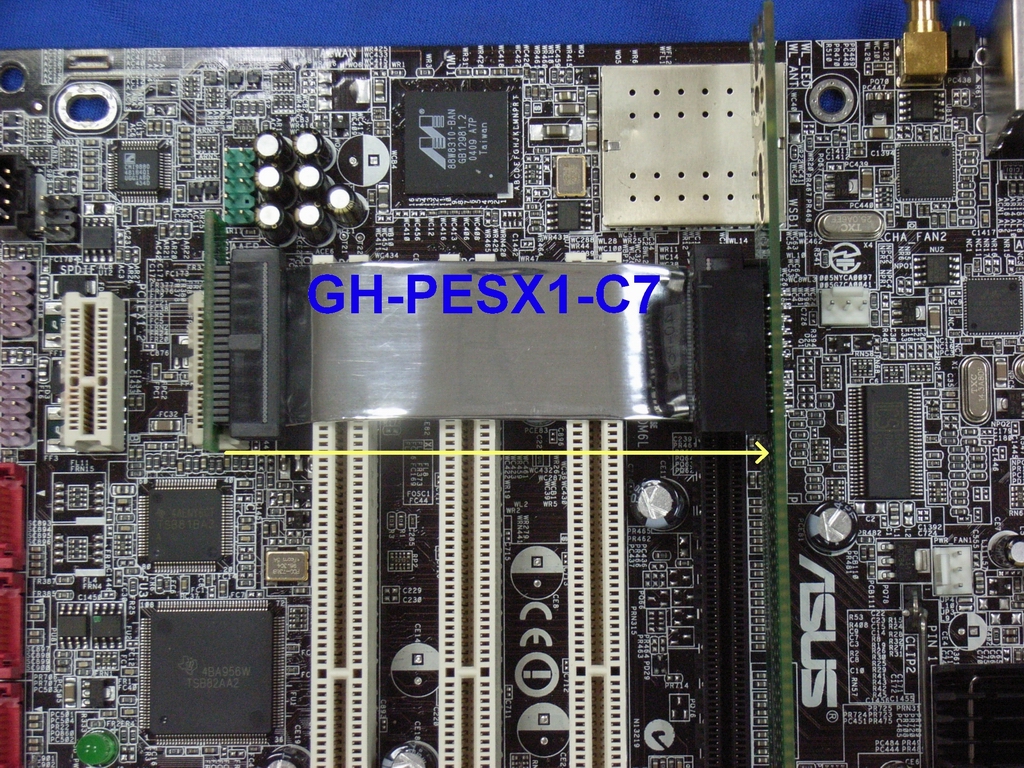

  GH-PES series flexible PCI-e risers
come with smaller PCB
& different header direction. Please check and
choose the best one. |
 |
|

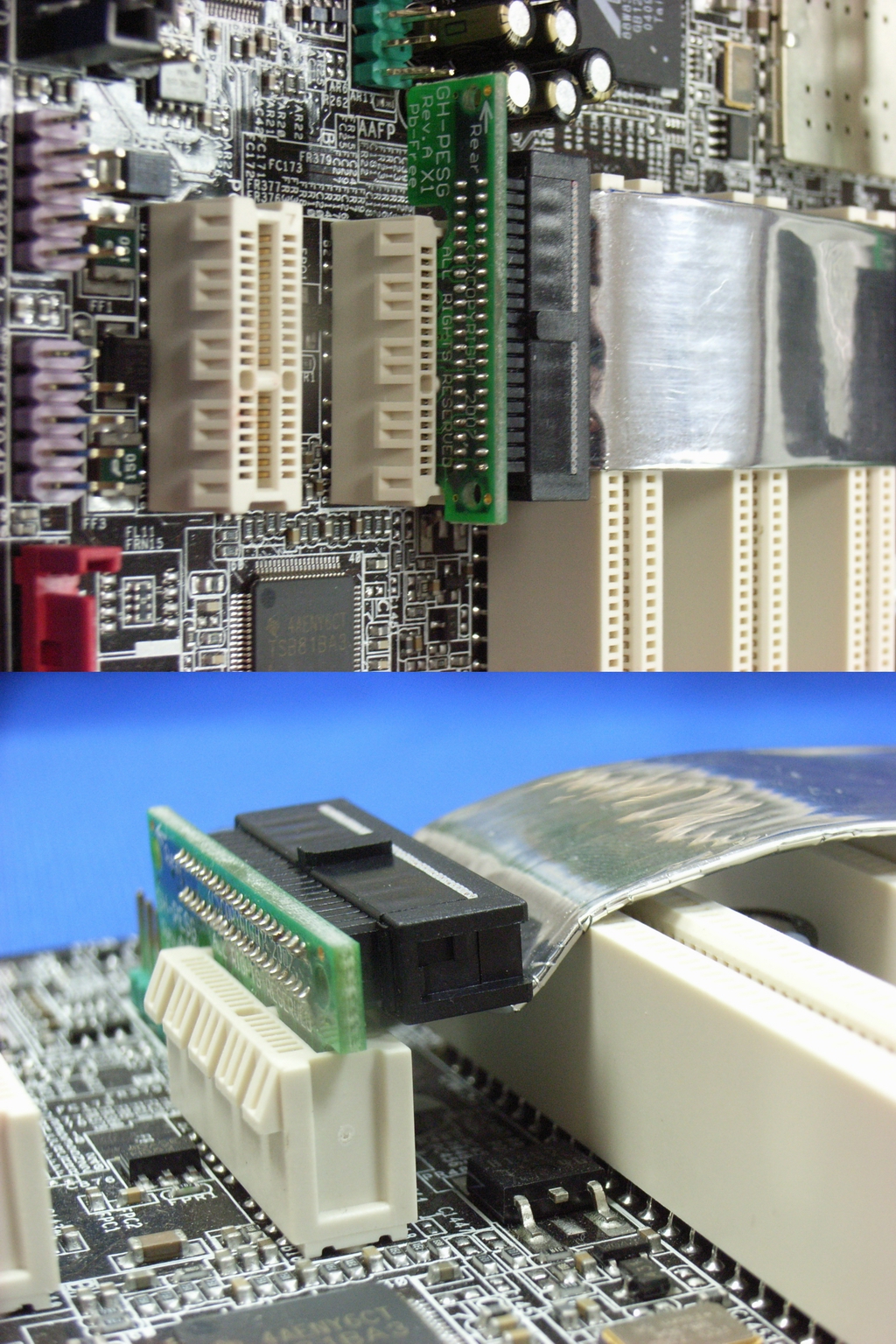

GH-PESX8-C7 flexible PCI
Express riser card for X8, also X4 and X1 |
|
  The
flexible PCI Express riser cards for X8, X4 and X1 are ready for you to
put add-on card to any place you desired. |
|
|
PA-CF18Z replaces 1.8"
ZIF / LIF hard disk drive with CF card. |
|
| With PA-CF18Z CF to ZIP adapter you can replace 1.8" TOSHIBA / HITACHI ZIF (zero insertion force) HDD or SANDISK SSD (Solid State Disk) with CompactFlash memory card running in TrueIDE mode. |  |
|

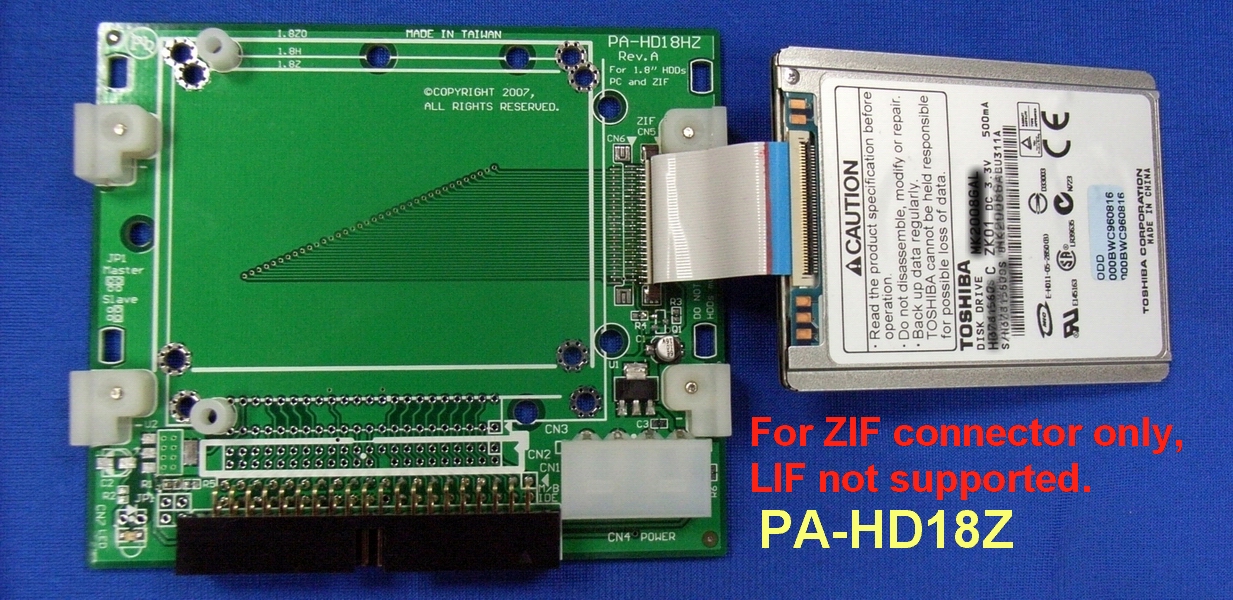

PA-HD18Z holds 1.8"
ZIF hard disk drive. |
|
|
|
 |
|

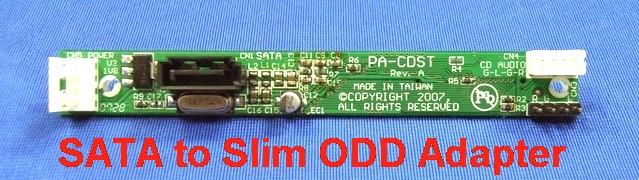

PA-CDST SATA to IDE Slim
CDROM
Adapter. |
|
|
|
|
PCI-Express 2U conversion
riser card. |
|
| Now you can use GH-U193X8-EX16 on PCI Express X8 slot for X16 add-on card. Use GH-U193X4-EX16 on PCI Express X4 slot for X8 and X16 add-on card and use GH-U193X1-EX16 on PCI Express X1 slot for X4, X8 and X16 add-on card. |  |
|
PA-HD18H holds
Hitachi 1.8 inch IDE hard disk drive. |
|
| With PA-HD18H you can install Hitachi 1.8inch IDE HDD in 3.5" drive bay. |  |
|
PA-CF18H replaces
HITACHI 1.8" hard disk drive with CFcard. |
|
| With PA-CF18H you can install CF card into systems that use HITACHI 1.8 inch IDE (PC) version hard disk (for example: Travelstar C4K40) and get more reliability while on the road. |  |
|
PA-CF25 replaces 2,5" hard disk drive with
CFcards. |
|
| With PA-CF25 you can install up to two CF cards into systems that use 2.5 inch IDE hard disk to get both reliability and performance. Note: The system must be capable of accessing Slave Mode IDE HDD otherwise the second CF slot will not be recognized. |  |
|
GH-PELX16-Duo-C7 dual
flexible PCI
Express X16 raiser card |
|
| Now you install two PCI Express X16 cards in a 2U chassis by using GH-PELX16-Duo-C7. It supports SLI and CrossFire solutions. It works with nVidia GeForce 8800 graphics card. |  |
|
PCI-Express 1U conversion
riser card. |
|
| Sometimes
there is a need for installing PCI Express add-on card inside 1U chassis
on a slot that just can't fit it. Now you can use
GH-U19X8-EX16
on PCI Express X8 slot for X16 add-on card.
Use
GH-U19X4-EX16
on PCI Express X4 slot for X8 and X16 add-on card. |
 |
|
PCI-Express bus extender,
protecter and converter. |
|
| The
GH-08X16 PciExpress extension card extends a PCI
Express x16 card one slot pitch (0.8") and protects
slot from wearing out.
GH-08X16-X8
enables PCI Express X16 card to be plugged into a PCI Express X8 slot. |
 |
|
Flexible PCIe X16 Riser Card for HTPC. |
|
| For HTPC that require the add-on card to be mounted at a special location, the GH-157-C7 is designed to meet your requirement. It has a PCI Express X16 slot and is for right-side insertion. It works with nVidia GeForce 8800 graphics card. |  |
|
Flexible PCI 32bit Riser Card
for HTPC. |
|
| For HTPC that require the add-on card to be mounted at a special location, the GH-156-C9 is designed to meet your requirement. It has a 5V PCI 32bit slot and is for right-side insertion. |  |
|
2U Riser Card
for 3 PCI 32bit not at the 6th.
slot. |
|
| For 2U IPC chassis you may need 3 PCI slots but the motherboard dose not have PCI on the 6th. slot like Advantech AIMB-762. You can use GH-U2350 to plug PCI gold finger in the 5th. slot. |  |
|
2U Riser Card
for PCI
Express X8, X4 or X1 at the 6th.
slot. |
|
|
|
|
|
GH-19RX16 RIGHT-Side insertion for 1U BTX |
|
| For 1U IPC chassis, you can use GH-19RX16 to insert the PCI Express card from the right side. For motherboards like BTX form factor. |  |
|
PA-2DH25 holds up to two
2.5" SATA HDDs |
|
| Up to two 2.5 inch SATA hard disk drives can be mounted in a 3.5 inch drive bay. Use the same screws, SATA data and SATA power cables. |  |
|

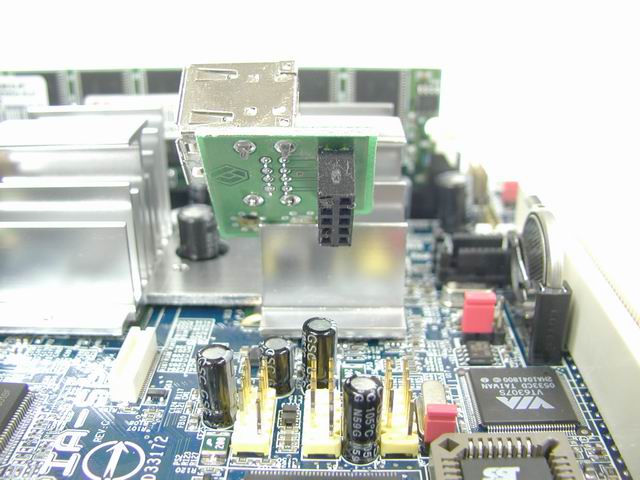

FAP-2USB |
|
| You can add 2 internal USB ports directly on motherboard header with FAP-2USB. The USB devices like WiFi adapter or Key-Pro can be installed inside the chassis. FAP-2USB is standard model. FAP-2USB-RD is in reversed direction. FAP-2USB-V is in vertical direction. |  |
|
GH-PELX16-Cx flexible PCI
Express X16 riser card |
|
| You can move the flex PCI Express X16 add-on card to a different place to meet your chassis arrangement by using GH-PELX16-C7. It works with nVidia GeForce 8800 graphics card. |  |
|
GH-U19X16 new
height with more space for 1U |
|
| For
1U IPC chassis, you can use our new riser cards to get more space for
the new PCI Express graphics cards or RAID controller cards. Available models: GH-U19X1 for PCI Express X1 GH-U19X4 for PCI Express X4 GH-U19X8 for PCI Express X8 GH-U19X16 for PCI Express X16 |
 |
|
PA-CD2 2.5" IDE to Slim
ODD
Adapter |
|
| The PA-CD2 enables slim ATAPI devices to be connected using 44-wire 2.0mm pitch cable. A jumper is provided to set master / slave modes. |  |
|
PA-CD1-JP 3.5" IDE to Slim
CD-ROM
Adapter |
|
| The PA-CD1-JP enables slim ATAPI devices (ODDs) to be connected to standard IDE port (40pin, 2.54mm pitch). Power can be supplied from FDD-type power connector. A jumper is provided to set master / slave / cabelselect modes. |  |
|
PA-HD25B2 holds up to two
2.5" IDE HDDs |
|
| Up to two 2.5 inch IDE HDDs can be mounted in a 3.5 inch drive bay. Use same screws, IDE cable, power plug and mount it in the same way. |  |
|
GH-U790 2U Riser Card
for PCI
Express X16 + PCI |
|
| Our GH-U790 is ready for new motherboards with PCI Express X16 located on the 7th. slot Intel D925XECV2, D915GEV and Tyan S5120, S5130. It enables you to build 2U IPC with the highest graphics performance. |  |
|
GH-U740 2U Riser Card
for PCI
Express X16 + PCI |
|
| Our GH-U740 is ready for new PCIExpress mainboards like INTEL Se7525 GP2, ASUS P5AD2 and Tyan S2676. With two 5V 32bit PCI and one PCIe X16 slot, It enables you to build 2U IPC or HTPC with the highest graphics performance. GH-U740-C7 can be used on motherboards with PCI slot not on the 5th slot. |  |
|
MiniPCI to PCI Adapters (mPCI type 3) |
|
| Two new boards are available to convert Mini-PCI cards, Wireless LAN for example, to normal PCI slot. The PA-MP1 and PA-MP2 come with one MiniPCI type III slot and can plug into any PCI slots. The PA-MP1 has metal bracket for mounting on standard chassis. |  |
|
New 150W DC to DC ATX Power Board:
PW-D01-D |
|
| This high efficiency DC/DC board fits into small chassis yet delivers stronger power that meets ATX12V PC power supply Spec. to support from VIA EPIA to P4 & AMD CPU based motherboards. Ideal for cool, quiet and silent Mini-ITX Fanless PC, Booksized PC, Panel PC, LCD TV, battery powered Car PC and POS PC. Input voltage: DC 14 to 20 Volt. Output capacity (Max.): 150 W (Watt). |
|
|
PA-CF3-D2 dual slot CF to IDE Adapters |
|
| This dual CF-IDE adapter has 2 slots for 2 CF cards or Microdrive. It plugs directly into IDE connecter on the motherboard. Applications: Linux server, Carputer, POS.RCP GHP PENTIUM4 P4 PENTIUM 4 DUAL XEON AMD SATA ADAPTER PWD01 MP PCI-Link GH-152H GH-152G PCIE PCI Express CarPC SFF SFFTech ANTEC HUSH MOREX KONTRON JM ATX Switching Mode DC-DC Power Kit ameri-rack car-puter ablytech Dirac dir-ssoa01 CE-ATA Flex-ATA PA-CD1 slim cd-rom cdrom MINIPCI3 PAMSD1 SDMSD PA-CF3 PA-CF5 catalyst MINIPCI 3 |
|
